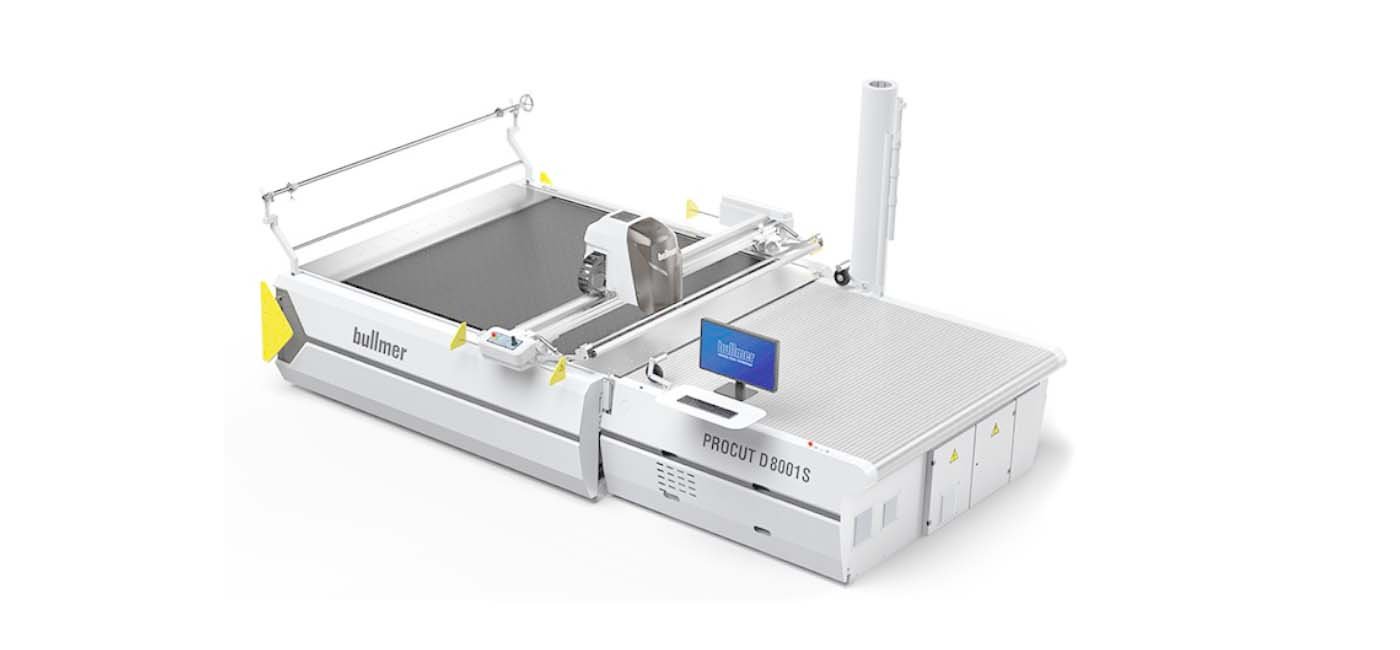

BULLMERProcut D8001S

High-Performance 8.0 cm Automatic Cutting Machine (Cutter)
Cutting Height up to 8 cm
Powerful Software & Hardware
Replaceable Cutting Head
Direct Drive Vacuum Turbine
Automatic Lubrication System

Features

Higher quality cutting is achieved at points with spacing.
For example, in corners, cutting is slower and the blade enters either from inside or outside depending on the situation.
User side is on the right, in the direction of fabric flow.
Movable cutter – from spreading table to another table.
Floor movement rails for movable cutter – 8 meters.
Overhead electrical rails for movable cutter – 8 meters.
Minimum vacuum leakage on cut parts thanks to vacuum sealing nylon (resealer).
Nylon foil holder and equipment.
1- Double pressure roller – on top of vacuum nylon.
High-efficiency new technology Siemens 17.5 kW parametric vacuum system.
Network kit for online connection.
Linear modules driven by X and Y axes.
Replaceable blade drive unit (cutting head).
Next generation sm

Software Features

Cutting Statistics and Analysis Reports (Data Management)
Cutting Path Simulation with Light Indicator (Laser Pointer)
Automatic Starting Point Optimization
With QualitCut, the inner and outer corners of the cutting line are detected, and when necessary
Very little mold gap thanks to Automatic Speed ​​Reduction Software at Contact Points
Windows Operating System
Resume from where it stopped without requiring referencing
Full compatibility with all CAD Systems with ISO 274D Cutfile File Format
Integrated Remote Control Software
Real-time viewing and tracking of the cutting job on the screen
Easy definition and change of notches (such as V, T, I Notches)
Defining Different Sharpening Scenarios (Example: Sharpening While Positioning)

Featured Features

Cutting Quality
Easy to Use
Replaceable Cutting Head
Digital Control System
Direct Drive Vacuum Turbine
Advanced Smart Blade System
Automatic Lubrication System
High Performance
Cutting Height up to 8 cm
Powerful Hardware & Software

Options

Barcode Reading Software (Excluding Barcode Reading Device)
Double Cold Drill (Drill), 2,500 rpm. For the Automotive Sector
Hot Drill (Drill) Unit for marking by drilling, 3,000 rpm.
User Side Left
Air Blowing System provides cooling of the blade against friction

Sectors

Ready-to-Wear
Furniture
Automotive
Leather
Technical Textiles
Transportation and Aviation
